Another use for the Oaktrail Tablet – Intel Honeycomb in 2H 2011.

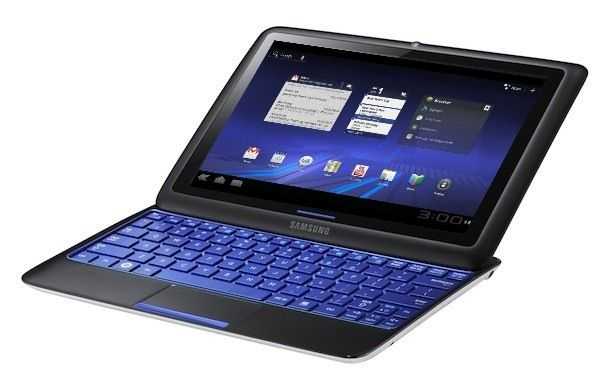

tx100 honeycombI’ve been talking about this since, well, over a year ago.  Intel’s new-generation mobile platforms, including Oaktrail, Moorestown and Medfield, could couple well with Android. I don’t mean a community X86 project, I mean official, Google approved, power-optimised versions of Android. Honeycomb included.

Image right: Mock-up

Digitimes just reported that “Asustek Computer and Lenovo are to launch Oak Trail/Android 3.1 tablet PCs soon and also Cedar Trail/ Chrome models in the second half of the year. inch

Dual mode tablets will be possible and there’s even a chance that virtualization could let multiple OS’ run concurrently. Oh how I hope Intel get on stage at Computex and show Windows, Meego and Android running on the same device. Why? Because it’s a great choice for the pro-customer and when it comes to productivity, we need more CPU power than ARM-based solutions can deliver today. Intel should also be able to achieve ‘always-on’ with these new platforms too. When I asked Intel about Android a year ago they said that power optimisation work was lagging MeeGo. Lets see next week how far MeeGo has come. I’ll try and find someone in Intel to give us a Honeycomb update too.

Anyone fancy a triple-OS Samsung TX100?

VIa netbooknews.

Intel Switch to PowerVR Graphics for CedarTrail (Unconfirmed)


There’s good and bad news to be drawn out of the news that Intel will go with a PowerVR core on Cedar Trail, the next generation of Netbook platform. VR-Zone report that Cedarview (the processing engine in the Cedar Trail platform) will include an SGX545 graphics core and not Intel graphics as had previously been suggested here.

VR-Zone Cedarview to sport PowerVR graphics.

The good news is that it brings the netbook platform in-line with other Atom platforms used for TV, ultra-mobile, embedded and tablet products and simplifies the builds for MeeGo and Android. The bad news is that the drivers for past versions of the SGX core used in Menlow (Z5xx-series CPUs) were never that good. Linux support, in particular, was a big problem.

Intel will, of course, be aware of that and will have to take steps to improve it because if 30 million sales of netbooks have unstable or poorly implemented drivers, it could have a serious impact.

As for the theoretical performance of the SGX545, I can only offer these figures that I dig out of web searches this morning. They aren’t confirmed.

GMA500 (PowerVR SGX535 200Mhz) 13 million triangles per second

GMA600 (PowerVR SGX535 400Mhz) 26 million triangles per second (assumed)

GMAxxx (PowerVR SGX545 400Mhz) 80 million triangles per second (low power version)

GMAxxx (PowerVR SGX545 640Mhz) 128 million triangles per second.

There’s a potential 10x improvement over GMA500 there but these figures are fairly meaningless as memory bus, cpu processing power and other implementation issues (including driver software) will affect the true performance.  The diagram shown on VR_Zone though shows a target of 2x Pinetrail. While that’s probably not going to beat the 3D performance of AMDs Zacate platforms, it’s a welcome boost that will drive non-gaming devices well and, we assume, keep the power requirements down. For non-gamers, the balance of CPU, GPU, media and power drain is likely to be good.

My outstanding question:Will Intel enable ‘shutdown’ idle (sub 200mw system drain) for screen-off scenarios on Cedar Trail like it is trying to do on Oaktrail, Moorestown and Medfield? This is something they may work with Microsoft on for Windows 8

The news has not been officially confirmed by Intel but that might happen at Computex later this month. If not, wait for hands-on at IDF 2011 in September where we expect final launch and product availability to be announced.

Samsung Series 7, TX100 Oaktrail slider up for pre-order in US



We’ve just put the Samsung TX100 specs in the database along with an expected launch price of $699. It’s been confirmed today though that the Pc7 series / TX100 is going to come in, with a 1.5Ghz Oaktrail / GMA 600 processing engine, 32Gb ssd, 2Gb of RAM and Windows 7 Home Premium for $649.

http://www.netbooknews.com/24590/samsung-series-7-hybrid-tablet-up-for-pre-order-at-amazon/

Those of you thinking about $299 netbooks might be a little shocked at the price but remember the TX100 is aimed at flexibility and portability with a good battery life. Windows 7 may not excite you either but its productive, plus, there are two more operating systems on the horizon that should sit well with the Oaktrail platform. Meego is still in progress and should be well optimized in terms of power efficiency but more exciting to the masses is the possibility of an official Intel Honeycomb build. It is being worked on for Oaktrail, Moorestown and Medfield although neither Intel or Samsung have mentioned anything about it. They should because I’m sure there are people put there interested in the advantages of a 2-way virtualised OS build.

The CPU could be a little weak compared to dual-core Atom Netbooks but if it has a fast SSD, it should help along with the 2x boost in GPU power over previous Menlow devices.

The TX100 is an important device for Intel. Samsung have done great work with mobile Intel devices in the past, lets hope they also do a good job with this one.

Posted from WordPress for Android with the Galaxy Tab

Cedar Trail Summary, Architecture, Features.


Technical sessions at Intel’s IDF in Beijing have all finished now so it’s time to go through some of the presentation material, the press releases and interview information from various sources to put together a summary of what Intel are planning with Cedar Trail in the netbook market. some details are still misssing but at this stage we can put together a fairly complete picture.

Intel’s netbook strategy comprises two platforms. The first, and the one that appears on most netbooks, is the Pinetrail platform. That is due for an update later this year and the new platform will be known as Cedar Trail, the one we’re discussing here.

The second platform is a more specialist, low end [performance] platform that grew out of the Menlow ultra mobile PC platform. Oaktrail, which uses the Z6xx Lincroft cpu is shipping now and offers a lower TDP with refined graphics and enhanced power-saving features. Oaktrail is for embedded, tablet and thin, light and rugged netbook solutions. Information on Oaktrail can be found here.

atom roadmap

Netbook market predictions.

While excitement in the netbook sector has cooled off somewhat and most commentators agree that some parts of the market are seeing competition from tablets, the sales numbers remain significant.

netbook tam

Note that this is the total addressable market. AMD Fusion, ARM and VIA-based devices will be competing for this market too. For Intel to compete it needs to address the top, bottom and specialist segments of the market.

Four more features revealed in Intel Cedar Trail presentation video.


Information on Cedar Trail is being tightly controlled this week at Intels IDF event in China. Launch isn’t expected until the second half of the year with devices being ready for the Oct, Nov buying season so clearly the platform isn’t final yet.

We’ve learnt that the video decoding hardware is on-board which indicates a new GPU and we’ve been told that Intel Wireless Display (with no mention of 1080p by the way) will join Wireless Audio and wireless syncing.

If you pay close attention to the video you’ll hear about four more features that haven’t been mentioned in press releases.

First, Doug Davis talks about a ‘frequency’ improvement for the CPU. This could mean a useful boost into 1.8 or 2.0Ghz territory which we already know Atom is capable of from the Atom Z500 series cpus. Combined with dual-cores and the process improvements we could see quite a significant jump in cpu power of 30% or more.

Secondly, you’ll hear a mention of a 50% lower thermal design point. That would bring the platform down to around 4 watts which is a huge improvement that would save significant battery life when used in high load working conditions. Possibly 30% again.

Listen to the mention of ‘Always Updated’ which will allow applications to get updates when in standby. That’s interesting wording be cause it doesn’t say ‘always on.’ This could be linked with the fourth feature mentioned to provide quick wake, poll, sleep cycles.

Quick boot is the fourth feature. If this is to work with Windows it could be a trick that allows very quick standby state recovery. Perhaps an on-die memory cache? I don’t know but it could be very useful, especially when coupled with a boot-and-poll sequencer.

video from Netbooknews.

Posted from WordPress for Android with the Galaxy Tab

IDF Beijing: Oaktrail to run 3.75W TDP. Next Gen Netbook Platform to get HD Video Acceleration


p_atom-z6xx_with_sm35_express_chipset_front_2

Z670 and Z650 Launched with 3W TDP

Details of two Oaktrail parts have been revealed by Intel today confirming pretty much everything we knew already! Availability of the Oaktrail parts are ‘now’ but as I mentioned in a tweet a few days ago, the first products shipping with Oaktrail won’t appear until at least May.

Two part numbers have been confirmed. The Z670 and Z650 (1.5Ghz and 1.2Ghz)  are both 3W CPUs and will be paired with the SM35 chipset at 0.75W. Remember that on the previous Z-series generation, codenamed Menlow, the two-chip solution came in at around 5W for the same capability. Both parts are manufactured on the 45nm process.

We’ve been fairly sure that the graphics core would be another PowerVR design for a long time but Intel finally confirmed that it’s the GMA600 clocked up to 400Mhz. That’s twice the speed of the GPU on Menlow and it should provide a noticeable boost. We’re not sure of the core design yet.

Importantly, the memory controller is now on-die with the GPU and CPU and this should also provide a noticeable boost as it did on Pinetrail in 2010. Other features include Intels ‘Deeper Sleep’ , ‘Enhanced Speed Step’ and, as on the previous generation, 1080p hardware decoding.

The SM35 chipset provides a new SATA interface USB is limited to V2.0 only. HDMI ports are supported.

Z6xx details
This slide refers to the Z6xx series in embedded, long-term-support versions. Apparently the consumer version of the Z670 is shipping ‘now.’

We’re working with a couple of OEDs to get a sample of an Oaktrail Tablet in the studio soon for more testing. We’re confident of good battery life on Oaktrail but need to test more on the performance side of things. Here’s our ECS Oaktrail Tablet hands-on at CeBIT.

Intel are talking about 35 Oaktrail design wins. Some of them are shown below.

p_asus-eeepad_slider_frontp_evolve

p_fujitsu-stylistic_tablet p_lenovo-ideapad_slate_frontbackp_motion-cl900tablet_pc_stylus

Asus Eee Pad Slider, Evolve III, Fujitsu Stylistic Q500, Lenovo Ideapad Slate, Motion Computing L900

Next Gen Netbook Platform 2H 2011 to Include hardware video decoding.

Intel will be leaking various details of the new Netbook platform over the next 24hrs but have already confirmed some of the Cedar Trail predictions I made last week. Wireless Display and Wireless Audio will be included on the platform along with a 1080p hardware decoding. Either this indicates a shift to a Z-series style GPU core or a totally new GPU design. I suspect the latter in order to include much needed 3D enhancements.

Fanless designs are mentioned in the early press teaser although Joanna Stern managed to get an interesting quote out of Intel. Apparently the Cedar Trail platform will get a ‘big boost’ in performance. Are they going dual-core across the range or is this just a reference the a new GPU that could compete with AMD’s Fusion APUs?

Expect more on Cedar Trail over the next 24hrs.

Source: Intel Press

My UMPC and Netbook Retire Today. AMD and ARM Move-In. What Happens Next…


Intel have dominated my mobile device choices for nearly 5 years but all that has changed in the last 4 months. Today, my ultra mobile PC retires and my netbook gets an upgrade.

For the last two, years my main computers have been a Quad-Core desktop that I use for hosting live sessions, podcasts and some video editing, and two mobile devices. The Gigabyte Touchnote Convertible Netbook has been my laptop and a Fujitsu U820 (actually a Japanese version U/B50N) ultra mobile PC has been used as my hot-desktop (as shown in this article.)

Today, the two mobile PCs drop away and are replaced with an AMD-based netbook solution and an ARM-based tablet. The Acer Aspire One 522 and Galaxy Tab have become my mobile device choices which means there is no longer a ultra mobile PC in my life.

IMG_6889

IMG_6890

The Fujitsu U820 had previously been my ultra mobile computer for expo’s and conferences and I remember using it successfully at SXSW in 2009. Over the last 5 months though its usefulness has waned because the Galaxy Tab has taken over. It fits *my* usage patterns a lot better. I sacrificed some ‘Full Internet Experience’ for weight, battery life, location, social networking apps, built-in camera, always-on and 3G. I talked about this ‘changeover’ last year. It’s now happened.

The Touchnote was still working well and I had no problems with it. After 2 years it’s proved to be rugged and capable but when the Acer Aspire One 522 came along last week it gave me so much more, in less weight and cost. Now that the Tab has taken over ultra-mobile duties to an acceptable level, there’s also no need for the U820.

I’ll miss the touchscreen on the Touchnote but I’m getting better battery life, more processing power,  way better HD and graphics acceleration and my 4GB RAM, SSD and Home Premium upgrade are adding to the experience i’m getting from the Acer Aspire.

The Acer Aspire One 522 is now my daytime desktop as well as my lightweight notebook.

IMG_6892

What happens next?

As 7-inch tablets get better and better with improved software, faster processing engines and higher quality connectivity there’s more and more that can be done on them. I’m already creating articles, emails, Tweets, IM and images but I see improved video and camera hardware and software coming too. I see accessories that could help the tablet become a unit that everything could be done on if needed. I would have no problem whatsoever using a solution like this for a week if weight and energy restrictions demanded it. The need for an ultra-light netbook is reducing for me. Having said that, the requirement for a PC with a keyboard doesn’t drop away completely.

7-inch screens aren’t comfortable for rich content generation and editing so I still see the need for a netbook or notebook for ‘bum-on-seat’ activities. What I see happening is that my netbook will get taken up a notch into a 11.6 or 12.1-inch territory that allows me to improve my video work. It’s a project I’ve already started. That could happen very soon as the Asus Eee PC 1215b nears availability.

Smartphone load drops.

As for the pocketable device in my life, I’m finding I use a smartphone less and less now. Dropping back to a 3.5-inch or even 4-inch experience for Internet and social networking activities is painful and I’d rather take the Tab with me than have a large smartphone. My smartphone is now a voice, sms, MP3, USB storage and emergency internet device. The N8 fits in so well here because it also has a stunning camera that allows me to photoblog with ease.

Because of my tablet use, I don’t expect to be putting much load on my smartphone any more and the list of requirements changes totally.

Intel’s next netbook move.

I confess that I didn’t have a lot of faith in AMD’s Brazos solution but they did it. They’ve made a classic disruptive move which will change the face of the netbook forever and, unless Intel repond quickly, take share away from Intel in the low-cost computing market. Well-known features/keywords like ‘HDMI’ and ‘1080p’ that are recognizable to the man on the street will differentiate AMD from Intel and where the price is the same, there’s little to think about. Games are also possible on AMD netbooks and it leaves little room for Intel to play in when it comes to Cedar-Trail.  They’ll have to increase the CPU power (1.66ghz dual-core is a nice figure that looks better, and performs better than the AMD 1.0Ghz solution) and add their thermal monitoring to allow overclocking on a core-by-core basis. 2.0Ghz ‘Turbo’ will be worth seeing. They’ll also have to add the 1080p capability from their Menlow and Moorestown platforms. To beat AMD they will need Wireless Display and hardware-accelerated H.264 and WMV encoding features to help with video format conversion. Longer battery life is a must and this is something Intel is highly likely to deliver with amazingly low quiescent states and very tightly-coupled wireless solutions. Given the likelihood that they will have a lower platform TDP and enable a smaller motherboard size, Intel solutions are likely to be thinner and lighter.

Can Intel enter the always-on tablet space?

AMD appear to be a long way off from having a soft/hard stack that satisfies the requirements for an ultra mobile computing device but I still see big opportunities in the near, 1-2 year timescale for Intel. 2011 truly is just the start of a new era of multi-device computing and Intel have been working on developing solutions to hit all areas of the market for the last 3 years or more. Wi-Di (wireless display), hardware security, thermal monitoring, overclocking and Intel Insider are features that could really add something to a mobile platform and as we look towards higher processing platform capability (including faster busses and rich connectivity) Intel do have an advantage, especially where screen and wireless connectivity take the lions share of the battery drain. As for always-on, their Moorestown and Medfield hardware, coupled with their software solutions, appear to have that covered. Android for consumption; MeeGo for a cross-over Linux-based solution. Windows for a full, pro-computing solution. They have had serious problems getting a partner to make a compelling device but lets talk about this again after the MeeGo conference in May and the Nokia MeeGo product which could also air at that time.

And don’t think I haven’t forgotten about all the advantages that come with having a traditional mobile PC soft and hard architecture. USB host, multitasking user interface, mouse-over, business software, security, multi-user, extended display, remote desktop, upgrades and hacks, printing, ad-hoc Wi-Fi and a thousand other features that you forget about until you need them. If anything, my desire for high quality, flexible productive systems has gone up in the last months and this might sound strange but since the Japan disaster last week, I’ve been looking at mesh networking and emergency computing again and find that an X86 ultra mobile PC would be the best place to start. To that end, I’ll be loading up the U820 as my emergency computer.

That’s enough about me. How are you finding the ‘X-Over’ year of 2011?

Note. All my computing solutions have been paid for by my company and are not sponsored in any way. Runcore, however, supplied the SSD that i’m using in the Aspire One 522.

ECS 7″ Oaktrail Tablet Design


ECS Tablets - CeBit 2011 (4) ECS Tablets - CeBit 2011 (8)

The video below shows one of two designs for a 7 inch Oaktrail Tablet from ECS. Remember ECS design and manufacture devices for others so you might, if others are interested, see this reach the market under another brand. We hear that production is possible the May timeframe.

ECS are aiming for a sub 400gm weight and 6hrs of battery life and the following specifications…

ECS S7 Specs.jpg

More ECS Tablet images including the 10 inch and 7 inch designs in this gallery.
