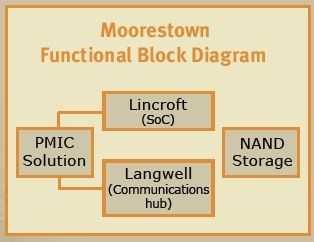

If you’re into the discreet component level of MIDs, you might want to check out this press release from NEC.

NEC Electronics America, Inc. today announced that it will highlight its power management IC (PMIC) technology at the International Consumer Electronics Show (CES^®), January 8 11, 2009. The live demonstration will feature NEC Electronics’ PMIC solution for Intel’s next-generation Mobile Internet Device (MID) platform, codenamed Moorestown.

NEC were involved with the power management IC’s on Menlow so this is nothing new for them. For us, it might be a chance to see a Moorestown demo if someone can get themselves over to the NEC booth and register for a private demo.

Product brief here: (PDF) Via.

The charger is a Solio Classic with a 6wh capacity cell. The iPhone has a 5wh cell.

At first glance it seems like too much of a challenge. Looking at the solar cell area and comparing it to my own 25W panel which measures about 1m squared tells me that this device is going to have a tiny sun-capture capability. Looking at the FAQ on the device gives a few clues:

It takes 8-10 hours to fully charge a Solio from the sun. With peak charging times between 10am and 2pm, it takes a minimum of 2 days to fully charge a Solio.

8-10 hours for a 6Wh battery is under 1W of solar capture, under ideal conditions.

It’s winter in Philadelphia right now so I guess we’re looking at an average 60% sun-power through the peak hours which means it will take about 3 average days to charge the solar unit. Taking into account that about 20% power will be lost on cross-charging I’d estimate that Kevin is going to struggle to get a full charge every three days.

2.5G Smartphones like the first-gen iPhone that Kevin has, can easily take 2W of power when driven hard. So if Kevin isn’t careful. he’s going to be out of power in the first day but it looks like he’s done his research and is well on top of the challenge…

The strategies…let me go two days without charging my iPhone however, and that gives me two days to capture sunlight with the Solio. I guess if we have a three-day rainstorm, I’m out of luck.

The interesting part of the experiment will be to see what type of usage Kevin gets out of the device. Will it be voice only? Will he be able to use regular email polling as he’s planning. Will he use it as a mobile internet device or just as a voice phone?

It’s clear that this isn’t the best way to save energy given that the $75 Euro initial costs that could power an iPhone non-stop for about 40 years (*1) but these sort of experiments, this sort of publicity and the resulting discussion is exactly what’s needed to stimulate development and improvement of consumer solar solutions.

I don’t get many readers on this blog but from the responses I’ve had over the last year or so I know that many of the readers here will have already thought about this. Perhaps you’ve already done it? If so, what devices did you use and how did it / does it work out for you?

Track Kevin’s progress at JKOnTheRun.

(*1) Assuming the iPone takes a (very high) average drain of 1W, $75 would buy something in the order of 500kwh of household power. With an AC adaptor efficiency of 80%, the $75 over 45 years of iPhone usage.

When I did the Solar UMPC tour in 2007, it was an expensive job pulling together all the equipment. Foldable solar panels and ultra mobile computers were specialist items and difficult to find. The UMPC alone cost over 1100 Euro and had to be ordered through a specialist. Fortunately, Intel are starting to deliver on their promise of consumer-focused, highly efficient Mobile Internet Devices (MIDs)and it’s looking great for anyone wanting to power a real PC from the sun.

What was 1KG and cost 1110 Euro one year ago is now less than half the weight, takes half the power and cost a lot lot less. Within 12 months, the price will be down to 50% of what it was a year ago bringing mobile computing to the masses. Take the Aigo MID (see info below) It’s a full Linux-based PC with keyboard and screen, storage, usb, a camera, wifi, bluetooth and will even be available soon with built-in 3G. Its just 350gm in weight and having looked in detail at test results and asked owners about the battery life, its clear that it’s running in less than 4W of power meaning you can last twice as long on the same amount of stored power or reduce the size of the (expensive) solar panel and power storage. A huge step forward.

Survival with the Smallest and Most Efficient.

Recently, I have been thinking more about short-term emergency supplies. I usually keep a stock of foodstuffs and water in my cellar along with a radio, small gas stove and a radio but I really think a mobile computer should be part of my survival kit, even if it’s just for day-to-day ’emergencies.’ From being able to compute when your ISP has problems to being able to walk into the middle of a city without power or communications and instantly set up a WiFi hotsopt or Bluetooth hotspot with a simple, self-contained web-server offering emergency information. From being able to move away from an emergency area with your computer with scans of your important documents to being able to send an e-mail greeting to your mother when you forgot to send a card for her birthday (arguably one of the worst disaster scenarios possible!)

In times of disaster, you need to earn money too. As a pro-blogger (UMPCPortal) I would instantly lose 100% of my income if the Internet went down but by having an emergency Internet ‘station’ I’d have a lot of possibilities. Can you imagine how much bartering power you would have if your were one of the only people left in your area with a working PC and a 3G connection that could send and receive emergency SMS messages from the cellular radio system!

In times of comfort and stability it sounds almost extreme to be thinking about such scenarios but in the western world, we live in a just-in-time economy. Like the weather, everything could change in 48hrs. Considering your electronic storage, communications and computing as part of your survival kit is is something many people will be doing and having the lightest and most efficient kit is obviously the best way to go. Thank goodness for Mobile Internet Devices!

Solar UMPC Tip of the moment: (click on the links for information from the UMPCPortal database)

Aigo P8860 – One of the first consumer-focused Mobile Internet Devices based on Intel’s Atom processor and Moblin, Linux-based operating system. Currently available by import. Average power drain (in-use) under 4W. 5V DC input. Micro-SD port. Wifi, Bluetooth and USB port about to take external peripherals. Also available in France as the Mi PC through the carrier SFR and expected to be launched under the Gigabyte brand soon as the M528.

Is anyone reading this considering a mobile PC as an essential item in their emergency kit? Is anyone even considering some form of fallback scenario?

I recall seeing this solution a while back on JKKMobile but Paul from MoDaCo has now got one for testing. Its a 47Wh battery pack for the HTC Shift from Mugen which should allow about 5hrs online time thus solving one of the HTC Shift’s biggest problems. It’s a tidy solution but at nearly $240, it’s a huge amount to pay for 5 hrs of computing time.

Paul is doing further testing and will report back on performance soon.

Yes, its that time of year again where we get the first encouraging days of sunshine in Europe so I’ve been into the cellar and dusted-off my Sunlinq 24W solar panel.


Sun strength for the last 2.5 days.

I’m not planning a solarumpc tour this year but I am planning to get some use out of the panel. At the moment, the plan is to run a UMPC from the solar panel that could serve this blog. I doubt i’ll be able to do it 24/7 for the whole of summer but I’m running some tests on the Raon Digital Everun S6S at the moment to see exactly how much I could get out of it with the 24W panel.

The Everun, when configured for 400Mhz with WIfi and screen off, will consume a tiny 4W at idle and about 6W at full power which is about as low as you can go with a PC without having to switch to an ARM architecture. I don’t want to do that because the plan is just to install a basic Ubuntu image, fire up Apache and SSH and serve this blog as a set of static web pages. WIthout Mysql or PHP running it should keep the processor load down to a minimum although i’m not sure that Ubuntu will be able to switch the CPU into 400Mhz mode. It might have to stay locked at 600Mhz.

At 5W drain, the server would need 120Wh of energy to power it for a full day. With a 24Wh panel I’m only going to get about 80-100Wh per day on average (using the 4-hours sun/day  rule that applies to this part of the world) so at some point, back-up power is going to be needed. The problem is, how can I switch-over to back-up power (or gracefuly switch over to another server.) Switching the servers is OK but getting the Everun to shutdown when it reaches 5% power is impossible under Linux right now.

The Alternative is to shut-down the server between 0300 and 0900 every day and to try and regulate it that way or just keep topping up the SLA battery from other sources when needed.

I’m going to need a couple of new items for this project though.

1) Power usage measurement tools. I want to feed the data back into the website. Power used, power given by panel, current battery level. Any tips there would be much appreciated. Should I buy a dedicated data logging system with software or are there simpler ways to do this.

2) An ethernet port. The Everun only has a WIfi connection and that would take too much power so I’m looking at a USB to Ethernet adaptor. This one from SMC takes about 150mw which will be fine.

3) Bigger SLA battery. Rather than using the 56whr battery that I have, I should get one that takes about 200wh so that if we have two or three good days of sunshine, I can store the engergy and use it on days where the sun is weaker.

Solar panel positioning is going to be a major problem at my house which is badly oriented for a solar panel. I’m also a bit worried about loss along the length of cable I will need in order to position the solar panel correctly.

Over the next few weeks I hope to at least have a partial solar-powered web server running but if this blog disappears, you’ll know what’s happened!

When I did my first tests and calculations about the use of solar power to drive a PC I was quite amazed at the inefficiency of the process and today’s ‘laboratory conditions’ test proves just how much room for improvement there is. It’s thanks to devices like UMPCs that this is project is at all possible because I really doubt it would have worked with even a ‘power saving’ notebook PC.

Today I stayed at the campsite and put the Solar panel and Li-Ion battery through a 3 hours test. Its was a cloudless day with a very thin haze, 22 degrees centigrade and for reference I’m located at about 50 degrees north and 7 degrees east. The date is the 30th of August which is heading towards Autumn here in Germany. The test was done from 11:00 – 14:00 and I took the empty Li-Ion battery and charged it with the solar panel for 3 hours.

I estimate that about 1.2KW of energy hit my 7000 cm2 panel with about 660W falling on the Solar cells (3500 cm2). After conversion to electricity it created about 50w/hr of energy. Of that, about 40W was taken by the Li-Ion battery because it only uses a fixed current and voltage. It won’t adapt to the power available. Due to input voltage conversions and charging losses, this left me with an estimated 30W of energy and after taking this through yet another set of voltage conversions and charging process, left me with a rather poor 18W of power. Of course this is enough for a few hours of work but isn’t it incredible that so much power is wasted (or rather passed back as heat!)

I spent the rest of the afternoon trying to work out how this process could be improved and I’ve come up with a list of ideas that could help. I’ll talk though them in the next post but right now I need to put some more cream on the back of my legs because through all the concentration I forgot about the sun and I’ve burned the bit right behind the knee. That’s going to be really enjoyable tomorrow when I make the 70km dash to Bonn.

Here’s a diagram I created quickly on the Q1b. Hopefuly it makes things a bit clearer. How would you improve the architechture?

In a recent comment here, someone asked why the Lead-Acid battery was needed. Its probably not too clear in the video why I use it so I reproduce my answer (which comes from the best of my knowledge!) here.

There are two main problems with charging Li-Ion batteries from Solar panels.

Firstly, Li-Ion batteries (in notebooks and battery bank) charge using a constant current (stream) of power. For common notebook batteries and battery banks such as the Tekkeon MP3400, this is around 1A. A lot of the 12V portable solar panels only reach this power at high sun levels meaning you can only use them for a few hours mid-day. In fact a 12W panel might not be enough to even start the charging process. Secondly, if you have a huge panel that could deliver, say, twice as much power as needed, its not used. Only the power needed is taken. The rest is wasted.

These two problems can be overcome at the expense of weight with a lead-acid battery.
L-A batteries are more flexible. You can charge them with a trickle and also with a higher charge rate. They are much more suited to pairing with a solar panel. The problem with this solution is weight. Small 12v L-A batteries are over 2KG in weight!

What’s needed is a flexible Li-Ion battery charging solution. Currently there are no products on the market that can archive this but I’m searching hard!

In summary there are 2 solutions.
1 – Get a panel powerful enough to charge a Li-ion battery at 70% of its rated output. For example, a 25W panel and the Tekkeon MP3400 Li-ion battery. This will give you about 4 hours of charge time on a sunny summer day.  (Mid-Europe) This should be enough to completely fill up the Li-ion battery.
2 – Go for a heavier solution with a L-A battery and give yourself more charging flexibility.

They are expensive and inefficient. Solar panels need to develop a lot before they can provide the average man on the street with enough energy to supplement a worthwhile portion of his energy intake. Mind you, the average man is pretty inefficient. Cars, lighting, heating, cooling. We sap up energy like there’s no need to think about tomorrow. I’m sure the average person could cut their energy usage by 90% if they had the skills, time, money and resources to do it. At that point, solar power might be a more interesting proposition.

Mobile computing is one of the areas that is already cutting its energy requirements buy huge amounts. Where notebook PCs can take 20-30W, ultra mobile PCs are taking 10W and in 2008 when we start to see dedicated ultra low power, ultra mobile computing devices, that power requirement is going to get slashed down to the sub 5W level. Intel is talking about sub 4W and VIA have just launched the 3.5W Mobile-ITX board. Of course, the reason for this is not because of energy conservation, its because of heat, size and weight. Mobile devices need to be small and light. Small devices can only dissipate a certain amount of heat and light devices can only contain a certain amount of battery. The last thing we want is a UMPC melting through the bottom of our bag!

One nice side-effect of all this drive for tiny, light devices is that solar energy starts to cash-in. Smaller energy requirements means smaller solar panels which means lower costs and higher mobility. Right now, today, if you took the best solar technology and made a fold-out sun-shade for a UMPC of about 20x20cm, you would be able to power the UMPC non-stop during sunshine. Its true. The best solar tech is reaching 40% efficiency in the lab and at that rate a 20x20cm panel would provide up to 40W of power. Unfortunately, this is lab-tech at the moment and good quality, mass produced solar panels are down at the 15% efficiency level. Also add in the fact that many places don’t get much sun and you can see why its not really possible today.

But lets take the Reware Juice Bag as a good example of a useable bit of solar tech. It can provide up to 7W of power from a 20x30cm panel stitched into the backpack. That’s about 25W of stored energy per sunny day if you take into account losses on storage. Today, that would give you about 2-3 hours UMPC usage but with a 5W UMPC, you’re looking at 5 hours usage. Drop down to 3W (2010 perhaps) and 8 hours of battery life starts to get really useful. Lets assume that by 2010 the efficiency of Solar panels in increased by 50% and you’ve got full-day power from a panel that’s the size of a UMPC.

OK, its not 100% practical for everyone to be sitting outside looking for sun but it would work for a lot of people. And its just one example. How about taking the same calculation and scaling it up to a classroom full of UMPCs. You could power a full class of 30 with a few square meters of solar panel. Costs would be sub $1000 and if you compare it to 30 normal PC’s taking 150W per hour for 4 hours per day. (30 x 150 x 5 = 1.8KW) you are not only helping the environment but you’re reducing your air-con costs, noise and starting to get to the point where you save significant amounts of money. For a university that has 2000 PC’s deployed, well I don’t need to show the calculation do I.

After the solar-ump tour is finished I’m going to be following solar tech very closely on this blog and will continue to promote the marriage of ultra mobile PCs and solar tech. I don’t see the battery companies shifting towards more efficient battery technology so as solar energy starts to become a really interesting business opportunity we might start to see solar being integrated into specialist UMPCs for long-term outdoor usage. At some point in the future, when the calculations look attractive to the bean counters of this world, investment money will come pouring in to the mass market and the whole thing could take off in a very short time span. I predict, with excitement,  that within 2 years we’re going to see solar accessories for UMPCs. Within 3 years we’ll see specialist UMPCs with integrated solar panels. I’m hoping that in ten years time, the extended battery will be a thing of the past.
